efabox – The IP68 die-cast aluminum housing

Total Views: 1.837Daily Views: 5
The family of efabox die-cast aluminum enclosures
efabox – The high-quality die-cast aluminum housing with IP68/IP69K* protection for the most demanding requirements, even under the most extreme conditions.
efabox –The professional solution for using universal enclosures in harsh environments.
E-Mail: info@efa-berlin.com – Technische Informationen DE Öffnen PDF | Technical information EN Open PDF
The efa GmbH is the manufacturer of this aluminum die-cast housing.





efabox – for use in demanding environments.

Protection class IP68 / IP69K

The molded, closed seal made of silicone or neoprene guarantees full IP68/IP69K* protection, even after an impact with an impact energy of up to 7 joules.

The seal can be replaced quickly and easily if necessary.

Outdoor use

The high-quality die-cast aluminum alloy ensures high stability and a long service life. The high-quality powder coating ensures extreme corrosion resistance (> 1000 hours in salt spray test).

Variety of sizes

Choose from a wide range of standard sizes from our continuously expanding product range. Special sizes can also be supplied on request according to your specifications.

Color spectrum

All enclosures are available in red (RAL3001), black (RAL9005), silver gray (RAL7001), or uncoated as standard. On request, the efabox is also available in the color of your choice.

*Partially certified, all others upon request

Customer specifications

On request, we can supply you with the efabox pre-assembled with drill holes, components, and packaging according to your specifications.

Certifications

CE, RoHS, REACH, IP66, IP68, IP69K*

efabox – The robust, customizable industrial housing.

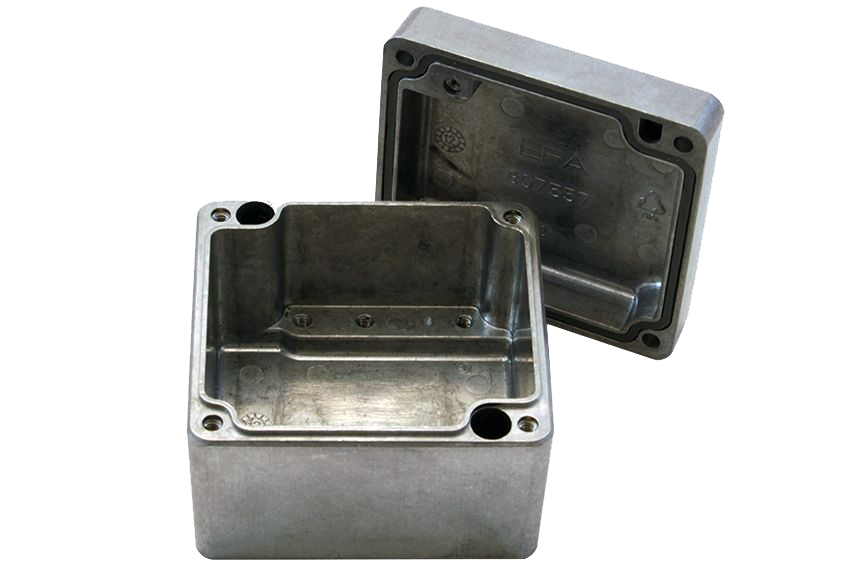

efabox das Aluminiumdruckgussgehäuse in der Abmessung 75x80x57mm IP68 Silikondichtung unbeschichtet

the efabox

  • High-quality die-cast aluminum alloy for high stability and long service life
  • Compression-molded, closed silicone or neoprene seal for high protection class IP68
  • High-quality powder coating for extreme corrosion resistance

the Enclosure

  • Material EN AC-AlSi12(Fe) – DIN EN 1706 GD-AlSi12 – DIN 1725
  • Properties high-strength corrosion-resistant long service life
  • Impact resistance 7 joules, in accordance with EN 60079, without impairing the degree of protection
  • High-quality workmanship
  • For indoor & outdoor use

the Gasket

  • Silikon -60°C to 200°C
  • Neopren -40°C to 130°C
  • compression molded
  • closed
  • interchangeable

the screw fitting

  • Stainless steel screws
  • captive
  • interchangeable

the powder coating

  • Material Epoxy-Polyester (Hybrid)/li>
  • Colors all colors possible/li>
  • Smooth / matt / textured surface/li>
  • Layer thickness 60 - 90 µm outside 40 - 70 µm inside/li>
  • Salt spray test > 1000 h
    • Pure epoxy or polyester powder coating also possible.

Standard enclosures and accessories

Size Enclosure Accessories
RAL3001
Red		 RAL7001
Gray		 RAL9005
Black		 Blank Mounting plate DIN rail
45x50x30 128-000-362 128-000-346 128-000-358 128-000-366 N/A N/A
58x64x34 128-000-361 128-000-353 128-000-357 128-000-365 128-000-410 N/A
64x98x34 128-000-523 128-000-524 128-000-525 128-000-526 128-000-527 128-000-528
64x150x34 128-001-050 128-001-049 128-001-048 128-001-047 N/A N/A
75x80x57 128-000-360 128-000-354 128-000-356 128-000-364 128-000-411 128-000-416
80x125x57 128-000-359 128-000-343 128-000-355 128-000-363 128-000-412 128-000-417
80x175x57 128-000-400 128-000-398 128-000-401 128-000-399 128-000-413 128-000-418
80x200x60 128-001-054 128-001-053 128-001-052 128-001-051 N/A N/A
80x250x57 128-000-461 128-000-446 128-000-462 128-000-463 128-000-414 128-000-419
100x100x81 128-000-467 128-000-466 128-000-465 128-000-464 128-000-476 128-000-477
100x160x81 128-001-025 128-001-024 128-001-023 128-001-022 N/A N/A
100x200x81 128-001-029 128-001-028 128-001-027 128-001-026 N/A N/A
120x122x81 128-000-471 128-000-470 128-000-469 128-000-468 128-000-478 128-000-479
120x122x91 128-000-475 128-000-474 128-000-473 128-000-472 128-000-478 128-000-479
120x220x81 128-000-661 128-000-659 128-000-660 128-000-658 128-000-704 128-000-701
120x220x91 128-000-665 128-000-663 128-000-664 128-000-662 128-000-704 128-000-701
122x360x80 128-000-686 128-000-687 128-000-688 128-000-689 N/A N/A
140x140x91 128-000-458 128-000-447 128-000-459 128-000-460 128-000-450 128-000-561
140x200x91 128-001-089 128-001-090 128-001-091 128-001-092 128-001-093 N/A
160x160x91 128-000-842 128-000-843 128-000-844 128-000-845 128-000-881 128-000-680
160x260x91 128-000-669 128-000-667 128-000-668 128-000-666 128-000-705 128-000-703
160x260x160 128-001-058 128-001-057 128-001-056 128-001-055 N/A N/A
160x360x90 128‐001‐071 128‐001‐072 128‐001‐073 128‐001‐074 128-001-075 128-001-076
180x180x101 128-000-874 128-000-875 128-000-876 128-000-877 128-000-882 128-000-681
230x280x111 128-001-084 128-001-085 128-001-086 128-001-087 128-001-088 N/A
230x330x110 128-000-690 128-000-691 128-000-692 128-000-693 N/A N/A
230x400x180 N/A 128-000-821 128-000-822 128-000-823 N/A N/A
